A Mains to Generator Transfer Switch is an essential component of any backup power system, ensuring that your generator can take over smoothly when the main power supply fails. This device automatically or manually switches your power source from the utility grid to your generator, providing you with uninterrupted power during an outage.

Why a Transfer Switch is Essential

• Automatic Power Transfer: When a power outage occurs, an automatic transfer switch (ATS) immediately detects the loss of power and signals the generator to start. Within seconds, the transfer switch shifts your power source from the mains to the generator, ensuring minimal disruption.
• Manual Options: For those who prefer manual control, a manual transfer switch allows you to activate your generator at your discretion. It’s a reliable solution that offers you full control over when and how your generator is used.
• Safety First: Without a transfer switch, manually connecting a generator to your home or business can be dangerous and may cause back-feeding, which poses risks to utility workers and your electrical system. A properly installed transfer switch eliminates these risks, providing a safe and reliable power transition.

Seamless Integration: The transfer switch integrates with your electrical panel, automatically detecting when utility power is restored. Once the mains power is stable, it switches back from the generator to the grid, shutting down the generator safely. This seamless process ensures your comfort and security during power outages.

Types of Transfer Switch

Key Benefits of Installing a Transfer Switch

• Convenience: Avoid the hassle of running extension cords or dealing with multiple plug-ins during a power outage. The transfer switch powers your entire home or business with a simple flip of a switch, or automatically, depending on the type.
• Protection: Protect your appliances and electronics from power surges when switching from utility power to generator power. The transfer switch ensures a smooth transition that reduces the risk of damage.
• Compliance: Meets local electrical codes and safety regulations, ensuring that your backup power system is installed correctly and operates safely.
• Enhanced Control: Some modern transfer switches come with advanced features like remote monitoring, allowing you to control and monitor your system from anywhere, offering greater peace of mind.

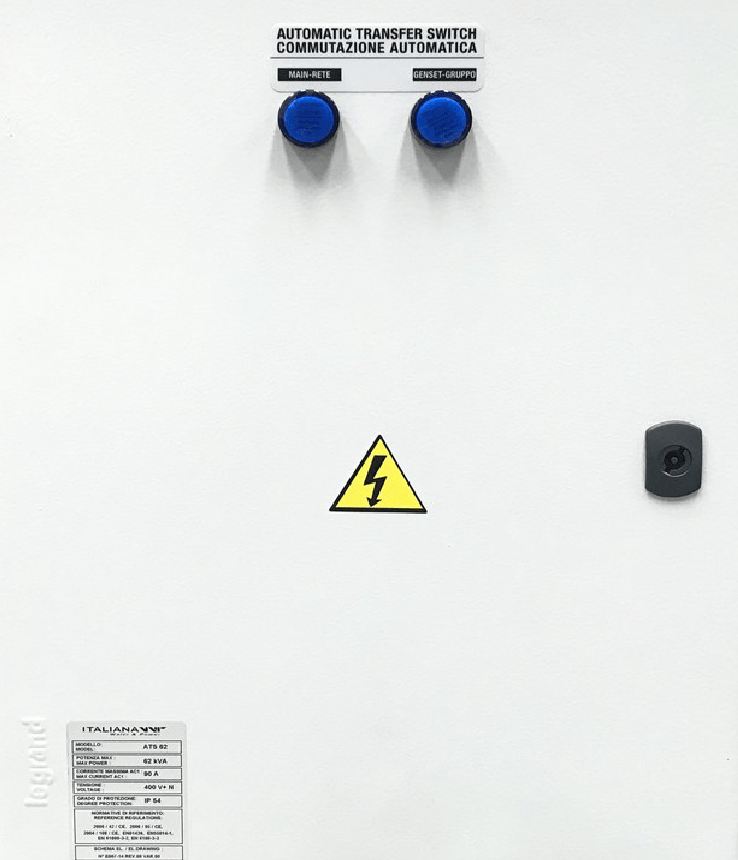

Our ATS Switch Range

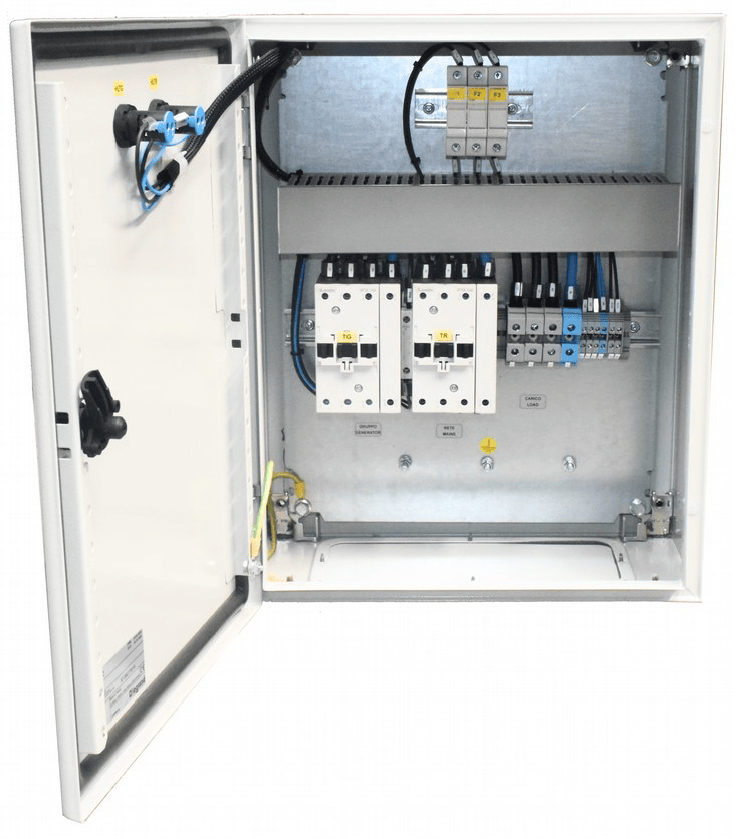

Single Phase ATS Switches

AMP Rating	Model	Switch System	Dimensions	Weight (KG)	IP Rating
40	ATS-10M	Lovato	400 x 300 x 200mm	10	IP55
51	ATS-12M	Lovato	400 x 300 x 200mm	10	IP55
72	ATS-17M	Lovato	400 x 300 x 200mm	11	IP55
144	ATS-33M	Lovato	500 x 400 x 200mm	18	IP55
224	ATS-52M	Lovato	500 x 400 x 200mm	27	IP55

Three Phase ATS Switches (Lovato)

AMP Rating	Model	Switch System	Dimensions	Weight (KG)	IP Rating
25	ATS-17	Lovato	400 x 300 x 200mm	10	IP55
32	ATS-22	Lovato	400 x 300 x 200mm	10	IP55
45	ATS-31	Lovato	400 x 300 x 200mm	11	IP55
90	ATS-62	Lovato	500 x 400 x 200mm	18	IP55
140	ATS-100	Lovato	500 x 400 x 200mm	27	IP55

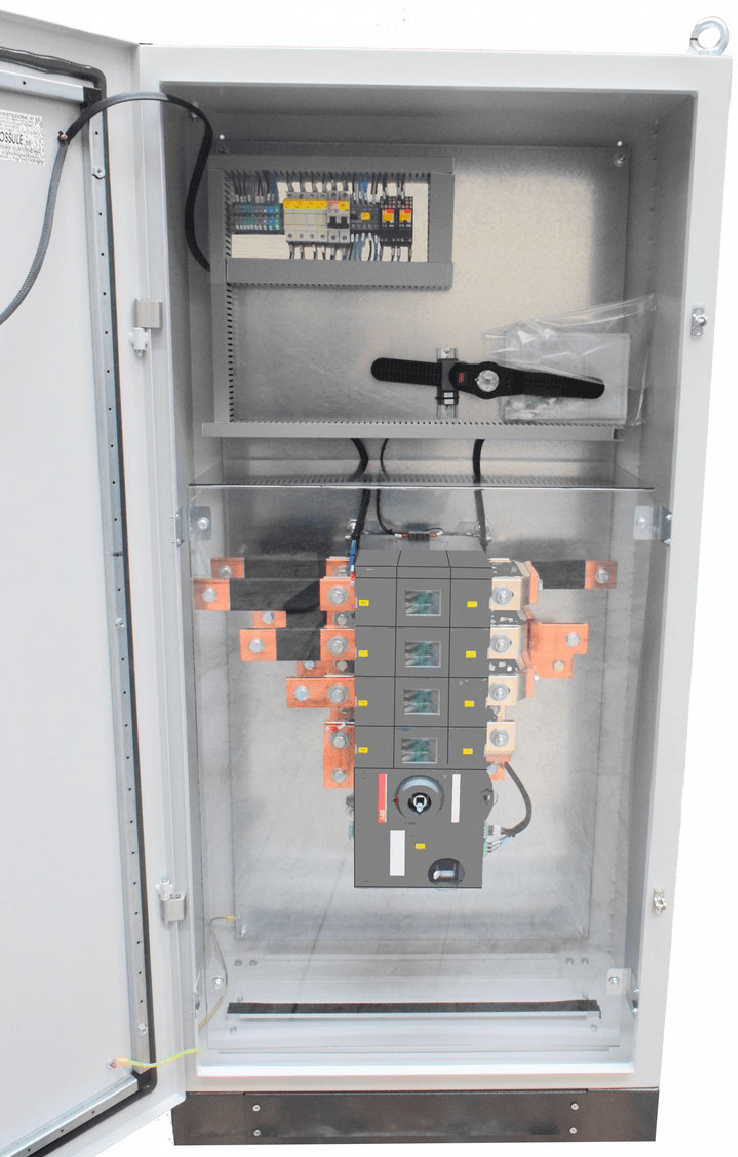

Three Phase ATS Switches (ABB SACE)

AMP Rating	Model	Switch System	Dimensions	Weight (KG)	IP Rating
250	ATS-173	ABB SACE	800 x 600 x 250mm	40	IP55
400	ATS-277	ABB SACE	1000 x 700 x 300mm	61	IP55
630	ATS-436	ABB SACE	1000 x 800 x 400mm	88	IP55
800	ATS-554	ABB SACE	1000 x 800 x 400mm	90	IP55
1000	ATS-692	ABB SACE	1700 x 800 x 400mm	165	IP55
1250	ATS-866	ABB SACE	1700 x 800 x 400mm	170	IP55
1600	ATS-1108	ABB SACE	1700 x 800 x 400mm	240	IP55
2000	ATS-1385	ABB SACE	1900 x 1000 x 800mm	270	IP55
2500	ATS-1732	ABB SACE	1900 x 1000 x 800mm	280	IP55
3200	ATS-2217	ABB SACE	1900 x 1000 x 800mm	300	IP55

For More information about our changeover switches and for a detailed quotation please contact us at any time
